ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.
BUYERS GUIDE
Make | Model | Year | Engine |
---|---|---|---|
MAZDA | 3 | 2005-13 | All |
MAZDA | 5 | 2006-10 | All |
MAZDA | 5 | 2012-15 | All |

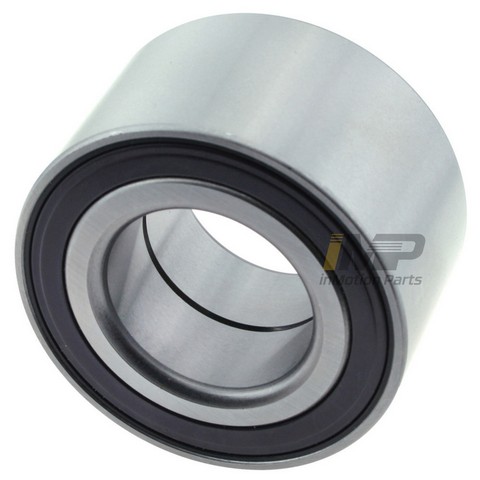

Brand:Wheel Bearing by WJB For MAZDA | ShowMeTheParts.com
Part Number:wb510096
Part Type: Wheel Bearing
Comment:
PARTS ATTRIBUTES
Name | Value |
---|---|
Bore (Inch) | 1.654 |
Bore (MM) | 42 |
Country of Origin (Primary) | China |
Design | Double Row Angular Contact |
Features and Benefits-1 | Bearings are designed to be easy to install and require minimal maintenance. |
Features and Benefits-2 | Engineered, manufactured, and tested to meet or exceed OE specifications. |
Features and Benefits-3 | Integrated seal design improves contamination resistance for a longer bearing life. |
Features and Benefits-4 | High performance grease is used to lubricate the inner raceway to ensure smooth operation, higher operating temperatures, and minimal noise. |
Features and Benefits-5 | Manufactured from high quality steel to maximize durability under even the harshest driving conditions. |
Generation | 1 |
Height (Inch) | 2.5 |
Height (mm) | 63.5 |
Inner Race Bore (Inch) | 1.654 |
Inner Race Bore (mm) | 42 |
Inner Race Radius (Inch) | 0.15 |
Inner Race Radius (MM) | 3.8 |
Inner Race Width (Inch) | 1.772 |
Inner Race Width (MM) | 45 |
Item Level GTIN | 789120083888 |
Item Level GTIN Qualifier | UP |
Length (Inch) | 3.65 |
Length (mm) | 92.71 |
Location | Front |
Marketing Description - 2000 | WJB Automotive wheel bearings are a direct replacement for original parts at a much more affordable cost. Each wheel bearing is engineered to meet or exceed OE specifications, and goes through intensive quality control inspections to ensure proper fi |
Outer Race Outside Diameter (Inch) | 3.15 |
Outer Race Outside Diameter (MM) | 80 |
Outer Race Radius (Inch) | 0.039 |
Outer Race Radius (mm) | 1 |
Outer Race Width (Inch) | 1.772 |
Outer Race Width (MM) | 45 |
Outside Diameter (Inch) | 3.15 |
Outside Diameter (MM) | 80 |
Package Height | 2.5 |
Package Length | 3.65 |
Package Size UOM | IN |
Package Weight | 2.07 |
Package Weight UOM | LBS |
Package Width | 3.65 |
Part Name | Wheel Bearing |
Part Type ID | 1672 |
Product Description - 20 | Wheel Bearing |
Product Description - 80 | Wheel Bearing |
Product Weight (lbs) | 2.07 |
Qty per Application | 2 |
Warranty Time | 12 |
Warranty Time UOM | Month |
Width (Inch) | 3.65 |
Width (MM) | 92.71 |
