ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.
BUYERS GUIDE
Make | Model | Year | Engine |
---|---|---|---|
CHEVROLET | BLAZER | 1997-2005 | All |
CHEVROLET | S10 | 1997-2004 | All |
GMC | JIMMY | 1997-2005 | All |
GMC | SONOMA | 1997-2004 | All |
ISUZU | HOMBRE | 1998-2000 | All |
OLDSMOBILE | BRAVADA | 1997-2001 | All |

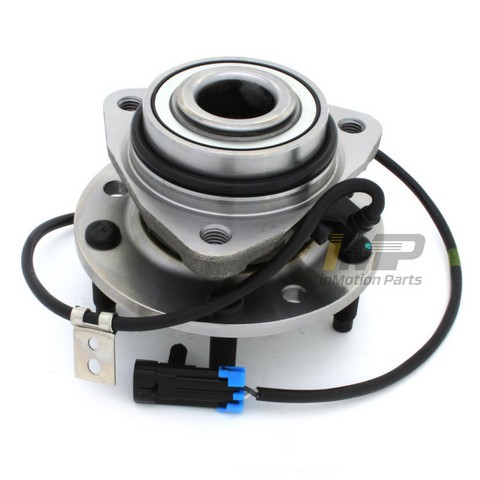

Brand:Wheel Bearing and Hub Assembly by WJB For CHEVROLET,GMC,ISUZU,OLDSMOBILE | ShowMeTheParts.com
Part Number:wa513124
Part Type: Wheel Bearing and Hub Assembly
Comment:
PARTS ATTRIBUTES
Name | Value |
---|---|
ABS Sensor Type | Sensor |
Bearing Outside Diameter (Inch) | 11.378 |
Bearing Outside Diameter (mm) | 144.5 |
Bolt Circle Diameter (Inch) | 4.757 |
Bolt Circle Diameter Metric (mm) | 120.83 |
Bolt Hole MET | M12X1.75 |
Bolt Size | M12X1.5 |
Brake Pilot Diameter (Inch) | 2.775 |
Country of Origin (Primary) | China |
Features and Benefits-1 | Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components. |
Features and Benefits-2 | WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure. |
Features and Benefits-3 | Reinforced seal design material allows for optimal performance in harsh environments. |
Features and Benefits-4 | WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability. |
Features and Benefits-5 | Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable) |
Flange Diameter (Inch) | 5.688 |
Flange Offset | 1.858 |
Flange Shape | MODIFIED TRIANGLE |
Footnote | Roll Formed |
Generation | 3 |
Height (Inch) | 5.3 |
Height (mm) | 134.62 |
Hub Pilot Diameter (Inch) | 3.208 |
Item Level GTIN | 789120017630 |
Item Level GTIN Qualifier | UP |
Length (Inch) | 7.5 |
Length (mm) | 190.5 |
Location | Front |
Marketing Description - 2000 | WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b |
Mounting Bolt Qty | 3 |
Mounting Type | Bolt-On |
Package Height | 5.3 |
Package Length | 7.5 |
Package Size UOM | IN |
Package Weight | 8.96 |
Package Weight UOM | LBS |
Package Width | 7.1 |
Part Name | Wheel Bearing and Hub Assembly |
Part Type ID | 14999 |
Product Description - 20 | Wheel Bearing and Hub Assembly |
Product Description - 80 | Wheel Bearing and Hub Assembly |
Product Weight (lbs) | 8.96 |
Qty per Application | 2 |
Spline Qty | 27 |
Warranty Time | 12 |
Warranty Time UOM | Month |
Wheel Pilot Diameter (Inch) | 2.759 |
Wheel Stud Qty | 5 |
Width (Inch) | 7.1 |
Width (MM) | 180.34 |
