WJB WA513111 Wheel Bearing and Hub Assembly For BMW

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

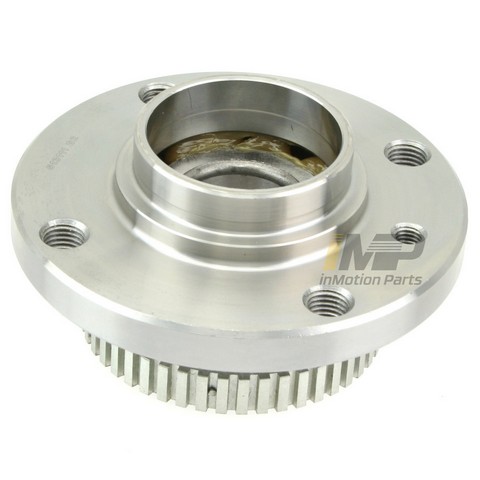

WJB WA513111 Wheel Bearing and Hub Assembly For BMW

BUYERS GUIDE

Make Model Year Engine
BMW318I1984-85All
BMW318I1991All
BMW318IS1991All
BMW3251986-88All
BMW325E1984-87All
BMW325ES1986-87All
BMW325I1987-91All
BMW325IS1987-91All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly by WJB For BMW | ShowMeTheParts.com
Part Number:wa513111
Part Type: Wheel Bearing and Hub Assembly
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeTone Ring
Bearing Outside Diameter (Inch)9.4488
Bearing Outside Diameter (mm)120
Bolt Circle Diameter (Inch)3.937
Bolt Circle Diameter Metric (mm)100
Bolt SizeM12X1.5
Bore (Inch)1.225
Bore (MM)31
Brake Pilot Diameter (Inch)2.598
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)4.724
Generation2
Height (Inch)4.5
Height (mm)114.3
Inner Race Radius (Inch)0.14
Inner Race Radius (MM)3.556
Inner Race Width (Inch)1.5748
Inner Race Width (MM)40
Item Level GTIN789120017531
Item Level GTIN QualifierUP
Length (Inch)6.1
Length (mm)154.94
LocationFront
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting TypePressed
Outer Race Outside Diameter (Inch)4.7244
Outer Race Outside Diameter (MM)120
Outer Race Width (Inch)2.416
Outer Race Width (MM)61
Package Height4.5
Package Length6.1
Package Size UOMIN
Package Weight3.82
Package Weight UOMLBS
Package Width6.1
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)3.82
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.2441
Width (Inch)6.1
Width (MM)154.94
