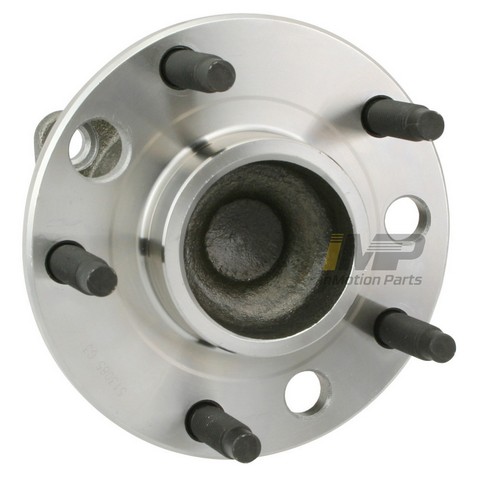

WJB WA513085 Wheel Bearing and Hub Assembly For CHEVROLET

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

WJB WA513085 Wheel Bearing and Hub Assembly For CHEVROLET

BUYERS GUIDE

Make Model Year Engine
CHEVROLETCORVETTE1991-94All
CHEVROLETCORVETTE1996All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly by WJB For CHEVROLET | ShowMeTheParts.com
Part Number:wa513085
Part Type: Wheel Bearing and Hub Assembly
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeSensor
Bearing Outside Diameter (Inch)11.5748
Bearing Outside Diameter (mm)147
Bolt Circle Diameter (Inch)4.75
Bolt Circle Diameter Metric (mm)120.65
Bolt Hole MET11.94
Bolt SizeM12X1.5
Brake Pilot Diameter (Inch)2.78
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.79
Flange Offset2.72
Flange ShapeRECTANGULAR
FootnoteRoll Formed
Generation3
Height (Inch)6.1
Height (mm)154.94
Hub Pilot Diameter (Inch)2.83
Inner Race Radius (Inch)0.14
Inner Race Radius (MM)3.556
Inner Race Width (Inch)6.9331
Inner Race Width (MM)176.101
Item Level GTIN789120017319
Item Level GTIN QualifierUP
Length (Inch)7.5
Length (mm)190.5
LocationFront
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting Bolt Qty4
Mounting TypeBolt-On
Outer Race Outside Diameter (Inch)5.7874
Outer Race Outside Diameter (MM)147
Outer Race Width (Inch)6.9331
Outer Race Width (MM)176.101
Package Height6.1
Package Length7.5
Package Size UOMIN
Package Weight9.5
Package Weight UOMLBS
Package Width7.1
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)9.5
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.76
Wheel Stud Qty5
Width (Inch)7.1
Width (MM)180.34
