WJB WA513084 Wheel Bearing and Hub Assembly For JEEP

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

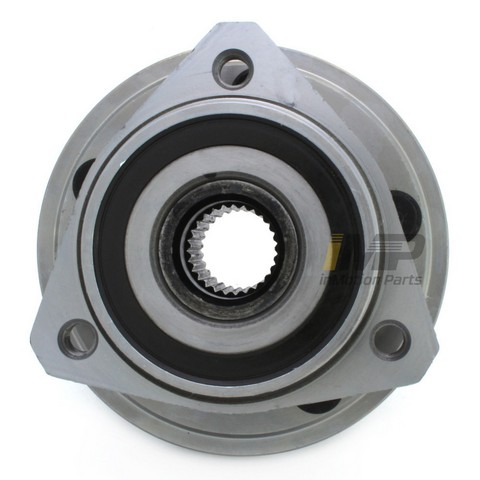

WJB WA513084 Wheel Bearing and Hub Assembly For JEEP

BUYERS GUIDE

Make Model Year Engine
JEEPCHEROKEE1990-99All
JEEPCOMANCHE1990-92All
JEEPGRAND CHEROKEE1993-98All
JEEPGRAND WAGONEER1993All
JEEPTJ1997-99All
JEEPWAGONEER1990All
JEEPWRANGLER1990-95All
JEEPWRANGLER1997-99All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly by WJB For JEEP | ShowMeTheParts.com
Part Number:wa513084
Part Type: Wheel Bearing and Hub Assembly
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeNon-ABS
Bearing Outside Diameter (Inch)13.26
Bearing Outside Diameter (mm)154
Bolt Circle Diameter (Inch)4.5
Bolt Circle Diameter Metric (mm)114.3
Bolt Hole METM12X1.75
Bolt Size43832
Bore (Inch)1.811
Bore (MM)45.999
Brake Pilot Diameter (Inch)2.832
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)6.043
Flange Offset2.133
Flange ShapeTRIANGULAR
Generation3
Height (Inch)6
Height (mm)152.4
Hub Pilot Diameter (Inch)3.942
Inner Race Width (Inch)3.466
Inner Race Width (MM)87.899
Item Level GTIN789120017296
Item Level GTIN QualifierUP
Length (Inch)5
Length (mm)127
LocationFront
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting Bolt Qty3
Mounting TypeBolt-On
Outer Race Outside Diameter (Inch)6.63
Outer Race Outside Diameter (MM)154
Outer Race Width (Inch)3.466
Outer Race Width (MM)87.899
Package Height6
Package Length5
Package Size UOMIN
Package Weight10.29
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)10.29
Qty per Application2
Spline Qty27
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.812
Wheel Stud Qty5
Width (Inch)6
Width (MM)152.4
