WJB WA513061 Wheel Bearing and Hub Assembly For CHEVROLET,GMC,OLDSMOBILE

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

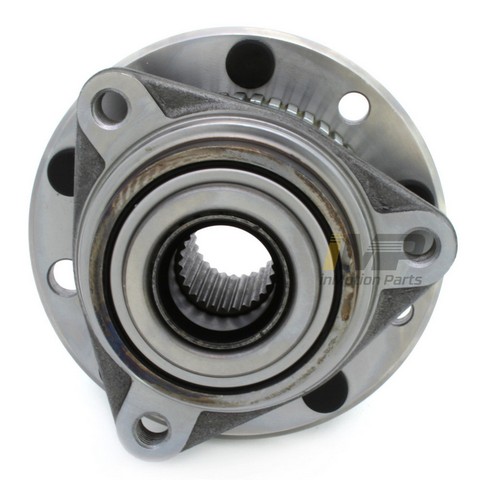

WJB WA513061 Wheel Bearing and Hub Assembly For CHEVROLET,GMC,OLDSMOBILE

BUYERS GUIDE

Make Model Year Engine
CHEVROLETBLAZER1995-97All
CHEVROLETS101990-97All
CHEVROLETS10 BLAZER1990-94All
GMCJIMMY1990-97All
GMCS151990All
GMCS15 JIMMY1990-91All
GMCSONOMA1991-97All
GMCSYCLONE1991All
GMCTYPHOON1992-93All
OLDSMOBILEBRAVADA1991-94All
OLDSMOBILEBRAVADA1996-97All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly by WJB For CHEVROLET,GMC,OLDSMOBILE | ShowMeTheParts.com
Part Number:wa513061
Part Type: Wheel Bearing and Hub Assembly
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeTone Ring
Bearing Outside Diameter (Inch)11.378
Bearing Outside Diameter (mm)144.5
Bolt Circle Diameter (Inch)4.75
Bolt Circle Diameter Metric (mm)120.65
Bolt Hole METM12X1.75
Bolt SizeM12X1.5
Brake Pilot Diameter (Inch)2.78
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.69
Flange Offset2.93
Flange ShapeMODIFIED TRIANGLE
Generation3
Height (Inch)7
Height (mm)177.8
Hub Pilot Diameter (Inch)3.21
Inner Race Width (Inch)3.7126
Inner Race Width (MM)94.3
Item Level GTIN789120017104
Item Level GTIN QualifierUP
Length (Inch)6.5
Length (mm)165.1
LocationFront
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting Bolt Qty3
Mounting TypeBolt-On
Outer Race Outside Diameter (Inch)5.689
Outer Race Outside Diameter (MM)144.5
Outer Race Width (Inch)3.7126
Outer Race Width (MM)94.3
Package Height7
Package Length6.5
Package Size UOMIN
Package Weight8.96
Package Weight UOMLBS
Package Width7
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)8.96
Qty per Application2
Spline Qty27
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.76
Wheel Stud Qty5
Width (Inch)7
Width (MM)177.8
