WJB WA513034 Wheel Bearing and Hub Assembly For HONDA

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

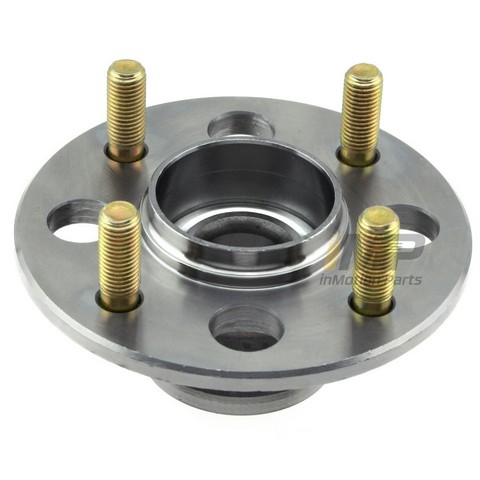

WJB WA513034 Wheel Bearing and Hub Assembly For HONDA


Make Model Year Engine


Brand:Wheel Bearing and Hub Assembly by WJB For HONDA | ShowMeTheParts.com
Part Number:wa513034
Part Type: Wheel Bearing and Hub Assembly


Name Value
ABS Sensor TypeNon-ABS
Bearing Outside Diameter (Inch)10.552
Bearing Outside Diameter (mm)134.01
Bolt Circle Diameter (Inch)3.941
Bolt Circle Diameter Metric (mm)100.1
Bolt SizeM12X1.5
Bore (Inch)0.9843
Bore (MM)25.001
Brake Pilot Diameter (Inch)2.4016
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.276
Flange Offset1.949
Height (Inch)6.5
Height (mm)165.1
Hub Pilot Diameter (Inch)2.362
Inner Race Width (Inch)3.11
Inner Race Width (MM)78.994
Item Level GTIN789120016855
Item Level GTIN QualifierUP
Length (Inch)4.7
Length (mm)119.38
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting TypePressed
Outer Race Outside Diameter (Inch)5.276
Outer Race Outside Diameter (MM)134.01
Outer Race Width (Inch)3.11
Outer Race Width (MM)78.994
Package Height6.5
Package Length4.7
Package Size UOMIN
Package Weight3.36
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)3.36
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.205
Width (Inch)6
Width (MM)152.4
