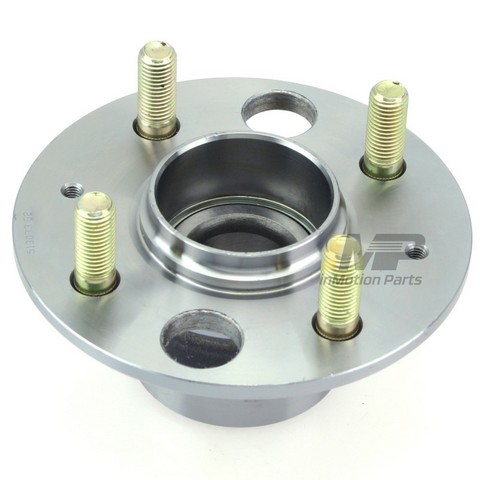

WJB WA513033 Wheel Bearing and Hub Assembly For ACURA,HONDA

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

WJB WA513033 Wheel Bearing and Hub Assembly For ACURA,HONDA

BUYERS GUIDE

Make Model Year Engine
ACURAINTEGRA1990-93All
HONDAACCORD1986-89All
HONDACIVIC1988-91All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly by WJB For ACURA,HONDA | ShowMeTheParts.com
Part Number:wa513033
Part Type: Wheel Bearing and Hub Assembly
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeNon-ABS
Bearing Outside Diameter (Inch)10.7086
Bearing Outside Diameter (mm)136
Bolt Circle Diameter (Inch)3.941
Bolt Circle Diameter Metric (mm)100.1
Bolt SizeM12X1.5
Brake Pilot Diameter (Inch)2.4016
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.354
Flange Offset2.154
Generation2
Height (Inch)6
Height (mm)152.4
Hub Pilot Diameter (Inch)2.598
Inner Race Radius (Inch)0.14
Inner Race Width (Inch)3.327
Inner Race Width (MM)84.505
Item Level GTIN789120016848
Item Level GTIN QualifierUP
Length (Inch)5
Length (mm)127
LocationRear
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting TypePressed
Outer Race Radius (Inch)3.327
Outer Race Radius (mm)84.505
Outer Race Width (Inch)5.354
Outer Race Width (MM)135.991
Package Height6
Package Length5
Package Size UOMIN
Package Weight3.81
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)3.81
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.0108
Width (Inch)6
Width (MM)152.4
