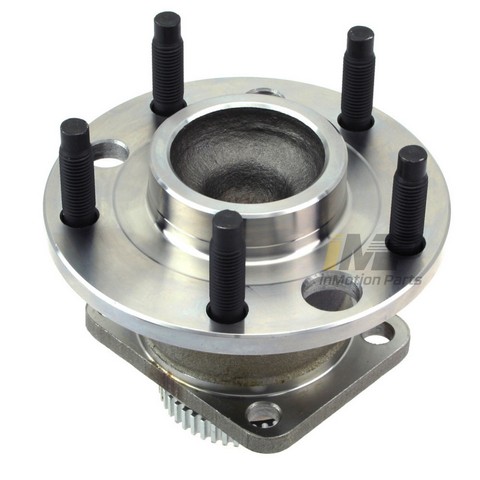

WJB WA513019 Wheel Bearing and Hub Assembly For CHEVROLET

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

WJB WA513019 Wheel Bearing and Hub Assembly For CHEVROLET


Make Model Year Engine


Brand:Wheel Bearing and Hub Assembly by WJB For CHEVROLET | ShowMeTheParts.com
Part Number:wa513019
Part Type: Wheel Bearing and Hub Assembly


Name Value
ABS Sensor TypeTone Ring
Bearing Outside Diameter (Inch)11.559
Bearing Outside Diameter (mm)146.8
Bolt Circle Diameter (Inch)4.75
Bolt Circle Diameter Metric (mm)120.65
Bolt Hole MET11.94
Bolt SizeM12X1.5
Brake Pilot Diameter (Inch)2.78
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.78
Flange Offset2.72
Height (Inch)6
Height (mm)152.4
Hub Pilot Diameter (Inch)2.83
Inner Race Radius (Inch)0.14
Inner Race Width (Inch)5.413
Inner Race Width (MM)137.49
Item Level GTIN789120016725
Item Level GTIN QualifierUP
Length (Inch)7
Length (mm)177.8
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting Bolt Qty4
Mounting TypeBolt-On
Outer Race Outside Diameter (Inch)5.779
Outer Race Outside Diameter (MM)146.786
Outer Race Width (Inch)5.413
Outer Race Width (MM)137.49
Package Height6
Package Length7
Package Size UOMIN
Package Weight9.02
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)9.02
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.76
Wheel Stud Qty5
Width (Inch)6
Width (MM)152.4
