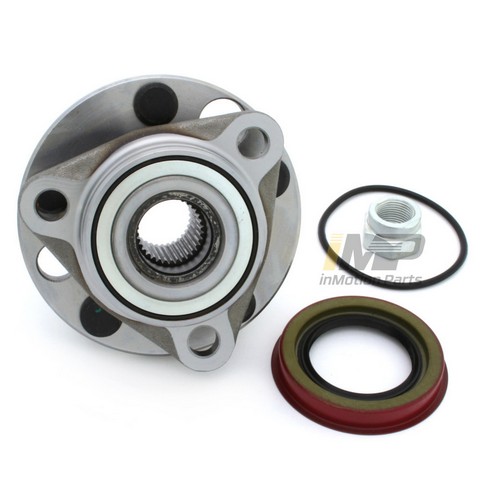

WJB WA513017K Wheel Bearing and Hub Assembly Repair Kit For BUICK,CADILLAC,CHEVROLET,OLDSMOBILE,PONTIAC

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

WJB WA513017K Wheel Bearing and Hub Assembly Repair Kit For BUICK,CADILLAC,CHEVROLET,OLDSMOBILE,PONTIAC

BUYERS GUIDE

Make Model Year Engine
BUICKSKYHAWK1984-89All
BUICKSKYLARK1986-98All
BUICKSOMERSET1986-87All
BUICKSOMERSET REGAL1985All
CADILLACCIMARRON1984-88All
CHEVROLETBERETTA1987-96All
CHEVROLETCAVALIER1984-2005All
CHEVROLETCORSICA1987-96All
OLDSMOBILEACHIEVA1992-98All
OLDSMOBILECALAIS1985-87All
OLDSMOBILECUTLASS CALAIS1988-91All
OLDSMOBILEFIRENZA1984-88All
PONTIACGRAND AM1985-98All
PONTIACJ2000 SUNBIRD1984-85All
PONTIACSUNBIRD1986-94All
PONTIACSUNFIRE1995-2005All
PONTIACTEMPEST1987-91All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly Repair Kit by WJB For BUICK,CADILLAC,CHEVROLET,OLDSMOBILE,PONTIAC | ShowMeTheParts.com
Part Number:wa513017k
Part Type: Wheel Bearing and Hub Assembly Repair Kit
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeNon-ABS
Bearing Outside Diameter (Inch)9.842
Bearing Outside Diameter (mm)125
Bolt Circle Diameter (Inch)3.937
Bolt Circle Diameter Metric (mm)100
Bolt Hole MET12.96
Bolt SizeM12X1.5
Brake Pilot Diameter (Inch)2.295
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)4.921
Flange Offset1.749
Flange ShapeMODIFIED TRIANGLE
Generation3
Height (Inch)6
Height (mm)152.4
Hub Pilot Diameter (Inch)2.894
Inner Race Radius (Inch)0.14
Inner Race Radius (MM)3.556
Inner Race Width (Inch)3.819
Inner Race Width (MM)97.002
Item Level GTIN789120016701
Item Level GTIN QualifierUP
Length (Inch)5
Length (mm)127
LocationFront
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting Bolt Qty3
Mounting TypeBolt-On
Outer Race Outside Diameter (Inch)4.921
Outer Race Outside Diameter (MM)125
Outer Race Width (Inch)3.819
Outer Race Width (MM)97.002
Package Height6
Package IncludedAxle Nut; O-Ring; Oil Seal
Package Length5
Package Size UOMIN
Package Weight6
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly Kit
Part Type ID50360
Product Description - 20Wheel Bearing and Hub Assembly Kit
Product Description - 80Wheel Bearing and Hub Assembly Kit
Product Weight (lbs)6
Qty per Application2
Spline Qty33
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.244
Wheel Stud Qty5
Width (Inch)6
Width (MM)152.4
