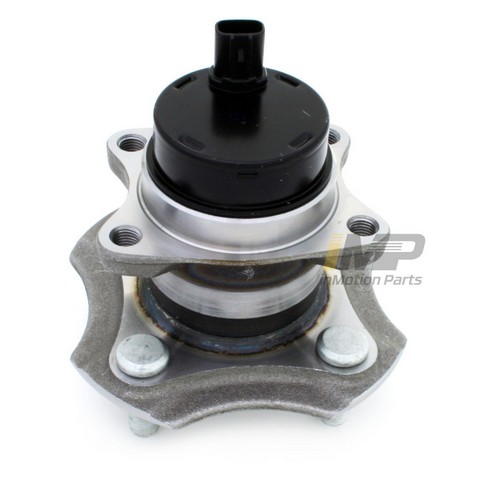

WJB WA512209 Wheel Bearing and Hub Assembly For SCION,TOYOTA

BUYERS GUIDE

Make Model Year Engine
SCIONXA2004-06All
SCIONXB2004-06All
TOYOTAECHO2000-05All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly by WJB For SCION,TOYOTA | ShowMeTheParts.com
Part Number:wa512209
Part Type: Wheel Bearing and Hub Assembly
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeSensor
Bolt Circle Diameter (Inch)3.94
Bolt Circle Diameter Metric (mm)100
Bolt Hole METM10X1.25
Bolt SizeM12X1.5
Brake Pilot Diameter (Inch)2.17
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.31
Flange Offset2.15
Flange ShapeOFFSET TRAPEZIOD
FootnoteRoll Formed
Generation3
Height (Inch)6
Height (mm)152.4
Hub Pilot Diameter (Inch)2.64
Item Level GTIN789120015230
Item Level GTIN QualifierUP
Length (Inch)7
Length (mm)177.8
LocationRear
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting Bolt Qty4
Mounting TypeBolt-On
Package Height6
Package Length7
Package Size UOMIN
Package Weight5.72
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)5.72
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.13
Wheel Stud Qty4
Width (Inch)6
Width (MM)152.4
