WJB WA512124 Wheel Bearing and Hub Assembly For HONDA,ISUZU

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

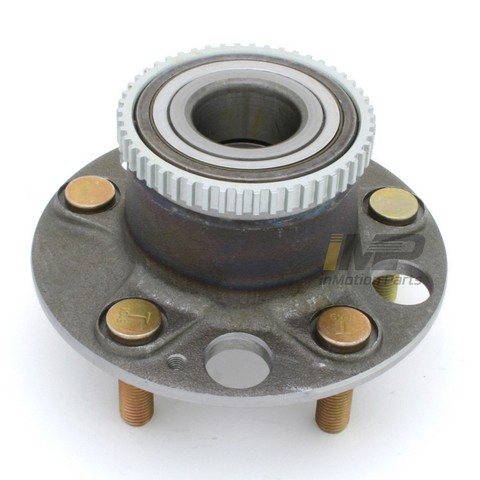

WJB WA512124 Wheel Bearing and Hub Assembly For HONDA,ISUZU


Make Model Year Engine


Brand:Wheel Bearing and Hub Assembly by WJB For HONDA,ISUZU | ShowMeTheParts.com
Part Number:wa512124
Part Type: Wheel Bearing and Hub Assembly


Name Value
ABS Sensor TypeTone Ring
Bearing Outside Diameter (Inch)11.5354
Bearing Outside Diameter (mm)146.5
Bolt Circle Diameter (Inch)4.567
Bolt Circle Diameter Metric (mm)116
Bolt SizeM12X1.5
Bore (Inch)1.3386
Bore (MM)34
Brake Pilot Diameter (Inch)2.7594
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.768
Flange Offset2.435
Height (Inch)6
Height (mm)152.4
Hub Pilot Diameter (Inch)2.874
Inner Race Width (Inch)1.8898
Inner Race Width (MM)48
Item Level GTIN789120014516
Item Level GTIN QualifierUP
Length (Inch)5
Length (mm)127
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting TypePressed
Outer Race Width (Inch)2.9528
Outer Race Width (MM)75
Package Height6
Package Length5
Package Size UOMIN
Package Weight5.5
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)5.5
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.5232
Width (Inch)6
Width (MM)152.4
