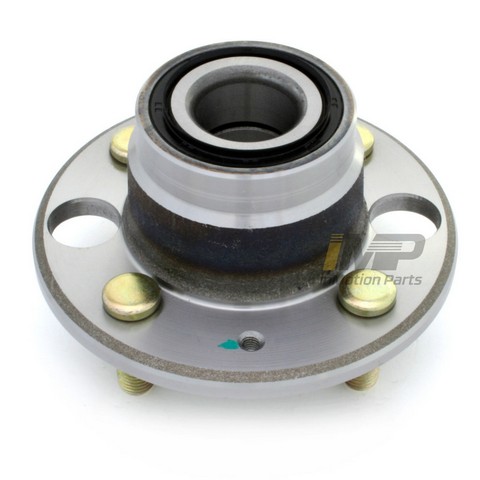

WJB WA512034 Wheel Bearing and Hub Assembly For ACURA,HONDA

Buy Part Now

ShowMeTheParts has a wide selection of WJB products for a variety of years, makes, and models.

WJB WA512034 Wheel Bearing and Hub Assembly For ACURA,HONDA

BUYERS GUIDE

Make Model Year Engine
ACURAINTEGRA1994-97All
HONDACIVIC1992-95All
HONDACIVIC1999-2000All
HONDACIVIC DEL SOL1993-97All

PART INFORMATION

Brand:Wheel Bearing and Hub Assembly by WJB For ACURA,HONDA | ShowMeTheParts.com
Part Number:wa512034
Part Type: Wheel Bearing and Hub Assembly
Comment:

PARTS ATTRIBUTES

Name Value
ABS Sensor TypeNon-ABS
Bearing Outside Diameter (Inch)10.708
Bearing Outside Diameter (mm)135.992
Bolt Circle Diameter (Inch)3.937
Bolt Circle Diameter Metric (mm)100
Bolt SizeM12X1.5
Bore (Inch)1.1811
Bore (MM)30
Brake Pilot Diameter (Inch)2.4016
Country of Origin (Primary)China
Features and Benefits-1Fitment and function are ensured by precision machining and measurements. rigorous testing and inspections of material and components.
Features and Benefits-2WJB Automotive wheel hub assemblies are designed to meet stringent fatigue requirements in order to reduce premature failure.
Features and Benefits-3Reinforced seal design material allows for optimal performance in harsh environments.
Features and Benefits-4WJB Automotive wheel hub assemblies undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability.
Features and Benefits-5Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data. (where applicable)
Flange Diameter (Inch)5.534
Flange Offset2.146
Generation2
Height (Inch)6
Height (mm)152.4
Hub Pilot Diameter (Inch)2.5984
Inner Race OD (Inch)1.764
Inner Race OD (mm)44.806
Inner Race Radius (Inch)0.157
Inner Race Radius (MM)3.988
Item Level GTIN789120014325
Item Level GTIN QualifierUP
Length (Inch)5
Length (mm)127
LocationRear
Marketing Description - 2000WJB Automotive wheel hub assemblies are made with high precision through state-of-the-art technology and manufactured with strict quality-control criteria. Every wheel hub assembly is specifically designed to fit the designated applications and may b
Mounting TypePressed
Outer Race Outside Diameter (Inch)2.598
Outer Race Outside Diameter (MM)65.989
Package Height6
Package Length5
Package Size UOMIN
Package Weight4.16
Package Weight UOMLBS
Package Width6
Part NameWheel Bearing and Hub Assembly
Part Type ID14999
Product Description - 20Wheel Bearing and Hub Assembly
Product Description - 80Wheel Bearing and Hub Assembly
Product Weight (lbs)4.16
Qty per Application2
Spline QtyNo Spline
Warranty Time12
Warranty Time UOMMonth
Wheel Pilot Diameter (Inch)2.0283
Width (Inch)6
Width (MM)152.4
