ShowMeTheParts has a wide selection of GSP products for a variety of years, makes, and models.
BUYERS GUIDE
Make | Model | Year | Engine |
---|---|---|---|
BUICK | SKYHAWK | 1982-89 | All |
BUICK | SKYLARK | 1986-90 | All |
BUICK | SOMERSET | 1986-87 | All |
BUICK | SOMERSET REGAL | 1985 | All |
CADILLAC | CIMARRON | 1982-88 | All |
CHEVROLET | BERETTA | 1987-91 | All |
CHEVROLET | CAVALIER | 1982-91 | All |
CHEVROLET | CORSICA | 1987-91 | All |
OLDSMOBILE | CALAIS | 1985-87 | All |
OLDSMOBILE | FIRENZA | 1982-88 | All |
PONTIAC | GRAND AM | 1985-91 | All |
PONTIAC | J2000 | 1982-83 | All |
PONTIAC | J2000 SUNBIRD | 1984-85 | All |
PONTIAC | SUNBIRD | 1986-91 | All |
PONTIAC | TEMPEST | 1987-91 | All |

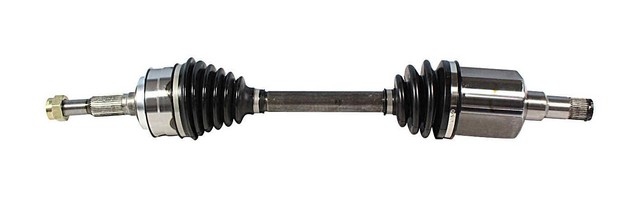

Brand:CV Axle Assembly by GSP For BUICK,CADILLAC,CHEVROLET,OLDSMOBILE,PONTIAC | ShowMeTheParts.com
Part Number:ncv10056
Part Type: CV Axle Assembly
Comment:GSP New CV Axle's are made from only the finest materials using premium steel, boot, and grease. GSP CV Axles are designed to exceed the original equipment specifications.for a trouble free ride.
PARTS ATTRIBUTES
Name | Value |
---|---|
ABS Tone Ring Included | No |
Axle Nut Included | Yes |
Axle Nut Length (Millimeter) | 20 |
Axle Nut Socket Size (Millimeter) | 30 |
Axle Nut Thread Size | M20×1.5 |
Axle Nut Type | Hex |
Bolt Thread Pitch | Neoprene |
Boot Material | Neoprene |
Brake Pilot Diameter (Millimeter) | Male |
California Proposition 65 | Yes |
Compressed Length (Inch) | 24.57 |
Compressed Length (Millimeter) | 624 |
Driven Type | Conventional |
Flange Bolt Hole Quantity | Yes |
Flange Included | Yes |
Hazardous Material | No |
Height - Each (Inch) | 4.7200 |
Inboard End Spline Quantity | 30 |
Inboard End Type | Hex |
Inboard Joint Type | Male |
Inboard Spline Quantity | 34 |
Item Level GTIN | 00883331100560 |
Length - Each (Inch) | 27.7600 |
Life Cycle Status | Available to Order |
Life Cycle Status Description | Available to Order - Part is released to customers for ordering. |
Outboard End Spline Quantity | M20×1.5 |
Outboard End Type | 20 |
Outboard Joint Type | Conventional |
Outboard Spline Quantity | 33 |
Pilot Diameter (Millimeter) | No |
Prop 65 Yes/No | Yes |
Quantity Per Application | 1 |
Shaft Diameter (Millimeter) | 24.57 |
Weight - Each (Gross Pounds) | 14.0600 |
Width - Each (Inch) | 4.7200 |
