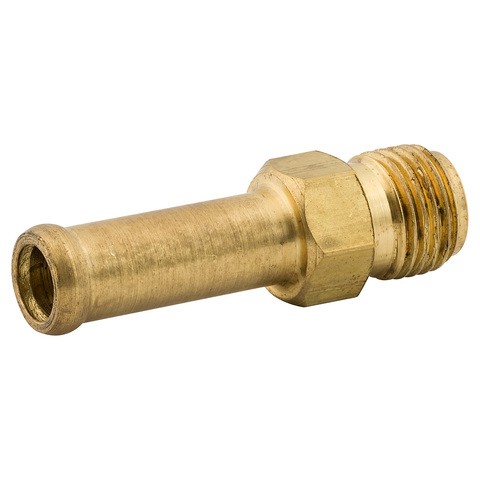

Brand:American Grease Stick (AGS) CHF-19B Clamp-On Hose Fitting
Part Number:CHF-19B
Part Type: Clamp-On Hose Fitting
Comment:AGS male clamp hose fittings are for low-pressure multi-purpose hose applications. To assemble, cut hose squarely. Slide clamp onto hose and then lubricate. Push hose onto fitting until bottoming out. Position clamp between fitting ball and end of hose. Working temp (pressure): -40 degrees F to 250 degrees F (60 psi). Applications include fuel, oil, and brass and steel fittings are comprised of Tube Nuts, Unions (Couplers), Adapters, Elbows, Tees, Bushings, Connectors, Grease, etc... AGS fittings are held to the strictest standards to perform flawlessly in their intended applications. Fittings are offered in a variety of packaging options, including: retail clam-shells, bulk boxed, and plastic tray assortments.
PARTS ATTRIBUTES
| Name | Value |
|---|---|
| Attachment Method | Clamp On |
| Bend Angle (deg) | Straight |
| California Proposition 65 | WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Fitting Size | 5/16 in |
| Fitting Type End 1 | No |
| Fitting Type End 2 | 10 |
| Hazardous Material | No |
| Height - Case (Inch) | 3.0000 |
| Height - Each (Inch) | 0.4400 |
| Hose Size | 5/16 Inch |
| Inverted Flare Size (in) | 1/4 Inch |
| Item Level GTIN | 00077146393594 |
| Length - Case (Inch) | 2.0000 |
| Length - Each (Inch) | 3.5000 |
| Life Cycle Status Description | Available to Order - Part is released to customers for ordering. |
| Material | Brass |
| Quantity Per Application | 1 |
| Shelf Qty | WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Thread Diameter | 7/16-24 Inch |
| Thread Size End 1 (mm) | Rigid Clamp |
| Weight - Case (Gross Pounds) | 0.3000 |
| Weight - Each (Gross Pounds) | 0.0250 |
| Width - Case (Inch) | 4.0000 |
| Width - Each (Inch) | 3.0000 |
