American Grease Stick (AGS) CFST-10B Compression Fitting

Buy Part Now

ShowMeTheParts has a wide selection of American Grease Stick (AGS) products for a variety of years, makes, and models.

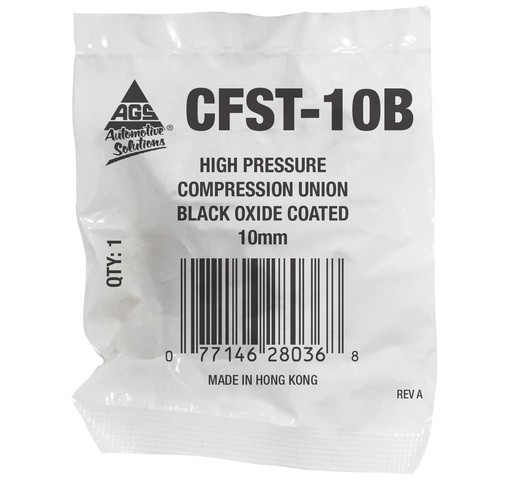

American Grease Stick (AGS) CFST-10B Compression Fitting


Make Model Year Engine


Brand:Compression Fitting by American Grease Stick (AGS) |
Part Number:cfst10b
Part Type: Compression Fitting
Comment:High pressure compression unions. Black Oxide coated steel for added rust resistance. High pressure compression unions may be used on air, oil and water applications up to 5,000 psi. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 10MM copper, brass, or aluminum tubing in applications up to 5,000 psi but NOT on brake lines.


Name Value
Abrasion ResistantNo
California Prop 65WARNING Cancer and Reproductive Harm -
ColorBlack Oxide
Compression Sleeve Inside Diameter10MM
Contains Rust InhibitorYes
Corrosion ResistantYes
Diameter (mm)10MM
Fitting FinishBlack Oxide
Fitting MaterialSteel
Fitting TypeCompression Union
Fitting Type End 1No
Fitting Type End 210
Hazardous MaterialNo
Height - Case (Inch)7.2500
Height - Each (Inch)0.2500
Item Level GTIN00077146280368
Length - Case (Inch)13.0000
Length - Each (Inch)3.5000
Life Cycle Status DescriptionAvailable to Order - Part is released to customers for ordering.
Line Diameter10MM
Maximum Pressure (psi)5000 psi
Maximum Working Pressure (psi)5000 psi
Quantity Per Application1
Quick Connect SystemMetric
Resistant ToRust
SAE or MetricMetric
Shelf Life After OpeningInfinite
Size (mm)10MM
Thread Size End 1 (mm)HP Comp Union 10MM
Thread Size End 2 (in)WARNING Cancer and Reproductive Harm -
Tube Diameter10MM
Universal Or Specific FitUniversal
Weight - Case (Gross Pounds)9.7300
Weight - Each (Gross Pounds)0.0770
Width - Case (Inch)14.0000
Width - Each (Inch)3.0000
