ShowMeTheParts has a wide selection of American Grease Stick (AGS) products for a variety of years, makes, and models.
BUYERS GUIDE
| Make | Model | Year | Engine |
|---|

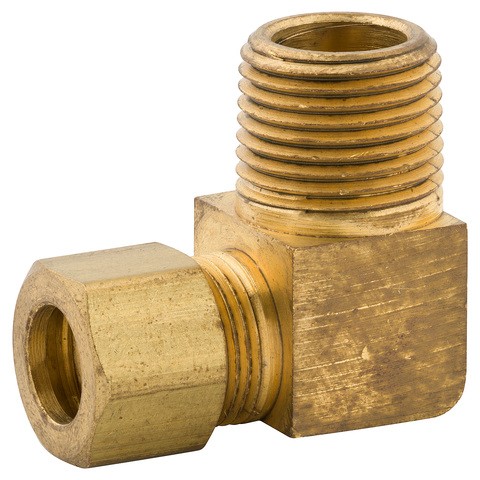

Brand:American Grease Stick (AGS) CF-34B Pipe to Compression Fitting
Part Number:CF-34B
Part Type: Pipe to Compression Fitting
Comment:Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 5/16in copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).
PARTS ATTRIBUTES
| Name | Value |
|---|---|
| Bend Angle (deg) | 90 Degree |
| California Proposition 65 | WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compression Sleeve Inside Diameter | 3/8 Inch |
| End 1 Thread Size | 9/16-24 Inch |
| End 2 Thread Size | 3/8 Inch |
| Fitting Type End 1 | No |
| Fitting Type End 2 | 5 |
| Hazardous Material | No |
| Height - Case (Inch) | 3.0000 |
| Height - Each (Inch) | 0.6400 |
| Item Level GTIN | 00077146394225 |
| Length - Case (Inch) | 2.0000 |
| Length - Each (Inch) | 3.5000 |
| Life Cycle Status Description | Available to Order - Part is released to customers for ordering. |
| Material | Brass |
| Maximum Working Pressure (psi) | 900 PSI |
| Quantity Per Application | 1 |
| Shape | Elbow |
| Shelf Qty | WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temperature Range (deg C) | -54 To +121 Degrees |
| Temperature Range (deg F) | -65 To +250 Degrees |
| Thread Diameter | Male 3/8-18 NPT |
| Thread Size | 3/8-18 Inch |
| Thread Size End 1 (mm) | Elb Conn Com |
| Tube Size (in) | 3/8 Inch |
| Weight - Case (Gross Pounds) | 0.5500 |
| Weight - Each (Gross Pounds) | 0.1000 |
| Width - Case (Inch) | 4.0000 |
| Width - Each (Inch) | 3.0000 |
