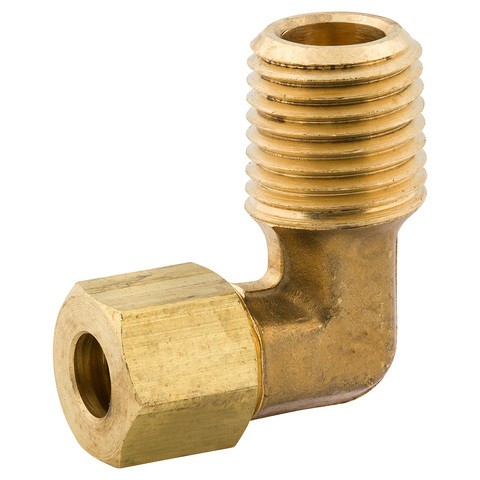

American Grease Stick (AGS) CF-28B Pipe to Compression Fitting

BUYERS GUIDE

Make Model Year Engine

PART INFORMATION

Brand:American Grease Stick (AGS) CF-28B Pipe to Compression Fitting
Part Number:CF-28B
Part Type: Pipe to Compression Fitting
Comment:Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 5/16in copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).

PARTS ATTRIBUTES

Name Value
Bend Angle (deg)90 Degree
California Proposition 65WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Compression Sleeve Inside Diameter1/4 Inch
End 1 Thread Size7/16-24 Inch
End 2 Thread Size1/4 Inch
Fitting Type End 1No
Fitting Type End 210
Hazardous MaterialNo
Height - Case (Inch)3.0000
Height - Each (Inch)0.5000
Item Level GTIN00077146393273
Length - Case (Inch)2.0000
Length - Each (Inch)3.5000
Life Cycle Status DescriptionAvailable to Order - Part is released to customers for ordering.
MaterialBrass
Maximum Working Pressure (psi)900 PSI
Quantity Per Application1
ShapeElbow
Shelf QtyWARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Temperature Range (deg C)-54 To +121 Degrees
Temperature Range (deg F)-65 To +250 Degrees
Thread DiameterMale 1/4-18 NPT
Thread Size1/4-18 Inch
Thread Size End 1 (mm)Elb Conn Com
Tube Size (in)1/4 Inch
Weight - Case (Gross Pounds)0.6750
Weight - Each (Gross Pounds)0.0630
Width - Case (Inch)4.0000
Width - Each (Inch)3.0000
