American Grease Stick (AGS) CF-18B Pipe to Compression Fitting

Buy Part Now

ShowMeTheParts has a wide selection of American Grease Stick (AGS) products for a variety of years, makes, and models.

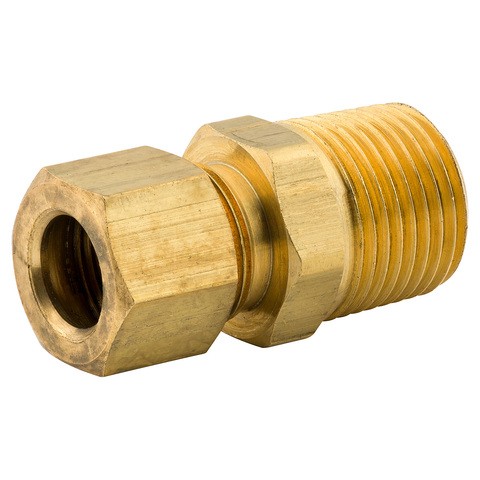

American Grease Stick (AGS) CF-18B Pipe to Compression Fitting

BUYERS GUIDE

Make Model Year Engine

PART INFORMATION

Brand:Pipe to Compression Fitting by American Grease Stick (AGS) | ShowMeTheParts.com
Part Number:cf18b
Part Type: Pipe to Compression Fitting
Comment:Compression unions are used in low pressure application such as: air, oil, and water. They are generally used to connect lengths of copper, brass, and aluminum tubing. To make connection, place the nut and then the sleeve over the tubing and then insert tube into the fitting body. When tight, the wedging action of sleeve between body and nut create a leak free connection. Use for joining 5/16in copper, brass, or aluminum tubing in low-pressure applications (NOT brake lines).

PARTS ATTRIBUTES

Name Value
California Proposition 65WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Compression Sleeve Inside Diameter3/8 Inch
End 1 Thread Diameter (Inch)3/8-24 Inch
End 1 Thread Size9/16-24 Inch
End 2 Thread Size3/8-24 Inch
Fitting Type End 1No
Fitting Type End 25
Hazardous MaterialNo
Height - Case (Inch)3.0000
Height - Each (Inch)0.6900
Item Level GTIN00077146393624
Length - Case (Inch)2.0000
Length - Each (Inch)3.5000
Life Cycle Status DescriptionAvailable to Order - Part is released to customers for ordering.
MaterialBrass
Maximum Working Pressure (psi)900 PSI
Quantity Per Application1
Shelf QtyWARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Temperature Range (deg C)-54 To +121 Degrees
Temperature Range (deg F)-65 To +250 Degrees
Thread DiameterMale 3/8-18 NPT
Thread Size3/8-18 Inch
Thread Size End 1 (mm)Connector Com
Tube Size (in)3/8 Inch
Weight - Case (Gross Pounds)0.4880
Weight - Each (Gross Pounds)0.0880
Width - Case (Inch)4.0000
Width - Each (Inch)3.0000
