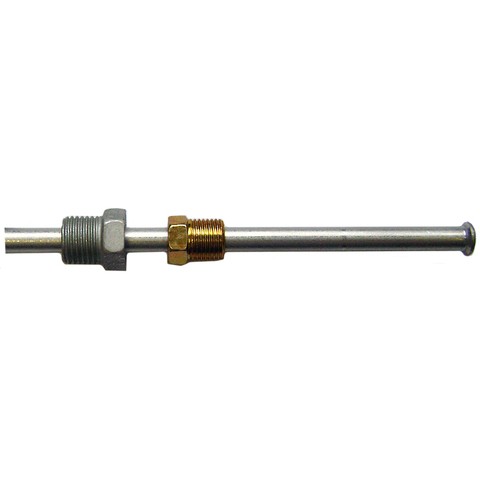

Brand:American Grease Stick (AGS) BLA-S420 Brake Hydraulic Line Adapter
Part Number:BLA-S420
Part Type: Brake Hydraulic Line Adapter
Comment:Connects 5/16in Domestic port to a 1/4in Domestic brake system. AGS 8in adapter brake lines allow dissimilar connections to be made within the same system. Adapter lines are available in common brake line tube sizes 3/16in, 1/4in, and 6mm. AGS offers OE matching lines. ISO/Bubble to SAE/Inverted, English thread to Metric thread, and enlarging/reducing lines. The entry-level replacement line is an excellent choice for aftermarket fluid transfer line repair and replacement. The steel lines and tubing are constructed with safety and longevity in mind. The tubing is produced by wrapping copper-coated steel around itself twice to form the tubing. This double-wall tube is what provides the strength and structural integrity to withstand the extreme pressures required, yet still remain pliable enough to be formed and bent to the shapes required to be routed beneath the vehicle. The finished tube is fused and zinc-coated to provide excellent rust and corrosion resistance as well. The Standard Steel line has been the choice of professional installers/mechanics and do-it-yourself mechanics for many years. When properly installed, the standard steel line can provide a long-lasting repair or replacement for many types of vehicles and for all types of fluid transfer systems, including braking systems. However, when a vehicle is expected to see harsh environments like snow, road treatments, salt air, etc...on a regular basis or when the longest replacement life is required; other premium lines like Poly-Armour and NiCopp should be considered. - Excellent Resistance to Rust and Corrosion - DOT Approved for Hydraulic Brake Systems - Bends and Forms without Kinking - Available in Coils of 25ft - Finished Lines Available for Domestic and Import. Standard Steel lines and tubing meet the following specifications: SAEJ527b, GM123M, SAEJ1290, DIN 74234.
PARTS ATTRIBUTES
| Name | Value |
|---|---|
| California Proposition 65 | WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Female To Female | Yes |
| Finish | Zinc Dichromate |
| Fitting Type End 1 | No |
| Fitting Type End 2 | 5 |
| Hazardous Material | No |
| Height - Case (Inch) | 2.0000 |
| Height - Each (Inch) | 0.6200 |
| Item Level GTIN | 00077146359538 |
| Length - Case (Inch) | 9.0000 |
| Length - Each (Inch) | 8.0000 |
| Life Cycle Status Description | Available to Order - Part is released to customers for ordering. |
| Male To Female | No |
| Male To Male | No |
| Material | Steel |
| Quantity Per Application | 1 |
| Shelf Qty | WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Thread Pitch #1 | 24 Per Inch |
| Thread Pitch #2 | 20 Per Inch |
| Thread Size #1 | 7/16 - 24 |
| Thread Size #2 | 1/2 - 20 |
| Thread Size End 1 (mm) | Brake Line Adapter |
| Thread Type #1 | SAE |
| Thread Type #2 | SAE |
| Weight - Case (Gross Pounds) | 0.5230 |
| Weight - Each (Gross Pounds) | 0.0820 |
| Width - Case (Inch) | 2.0000 |
| Width - Each (Inch) | 0.6200 |
